Module: | Calibration |
---|

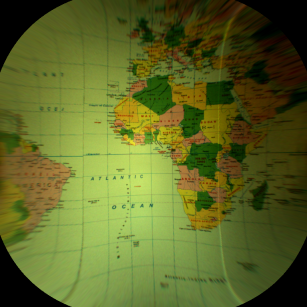

Creates a spatial map for transformations from a sphere surface to a flat rectangle.
Applications
Inspection of the surface of balls and other spherical objects. The result is used by RemapImage.
Name | Type | Range | Description | |
---|---|---|---|---|
inImageFormat | ImageFormat | Information about dimensions, depth and pixel type of the image | ||

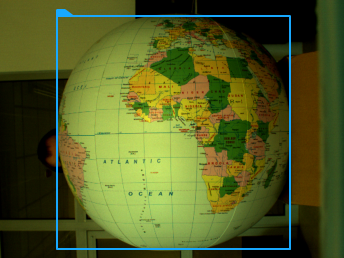

inSphereRectangle | Rectangle2D | Bounding rectangle of a sphere | ||
inSphereRadiusCorrection | Real | 0.0 - | How many pixels the sphere radius is larger than the visible circle radius | |
inNewDimension | Integer* | 1 - | Width and height of an image created by output spatial map application | |
inMargin | Integer | 0 - | Width of the sphere extreme points zone excluded from spatial map | |
inInterpolationMethod | InterpolationMethod | Interpolation method used in extraction of image pixel values | ||
outSpatialMap | SpatialMap | Output spatial map | ||
outOutputRegion | Region | Pixels set by the spatial map application |
Examples
Description of usage of this filter can be found in examples and tutorial: Globe Flattening.
Hardware Acceleration
This operation supports automatic parallelization for multicore and multiprocessor systems.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
Error type | Description |
---|---|
DomainError | Empty rectangle on input in CreateSphereMap. |
Complexity Level
This filter is available on Basic Complexity Level.
