Creates a region containing image pixels with values close to the given color.
Applications
Name | Type | Range | Description | |
---|---|---|---|---|
inImage | Image | Input image | ||
inRoi | Region* | Region of interest | ||
inRgbColor | Pixel | Color to compare the image to | ||
inChromaAmount | Real | 0.0 - 1.0 | Proportion of chromatic information in distance computation | |
inMaxDifference | Real | 0.0 - | Maximum difference between image pixel and model color | |
inHysteresis | Real | 0.0 - | Defines how much the difference criterium is lowered for pixels neighboring with other foreground pixels | |
outRegion | Region | Output region |
Requirements
For input inImage only pixel formats are supported: 1⨯uint8, 2⨯uint8, 3⨯uint8, 4⨯uint8.
Read more about pixel formats in Image documentation.
Hints
- Define the reference color by setting the inRgbColor input. You can use the Color Picker tool on an image preview and then copy-and-paste the value.
- Increase inChromaAmount to make the filter less sensitive to changes in brightness. Decrease it to make brightness more important.
- Set inMaxDifference experimentally to a value that best separates the foreground and background pixels.

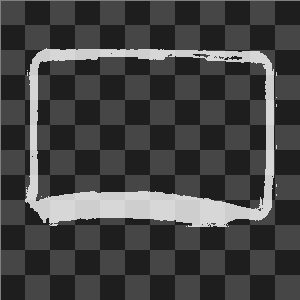

Examples
Hardware Acceleration
This operation is optimized for SSE2 technology for pixels of types: 1xUINT8, 3xUINT8.
This operation is optimized for NEON technology for pixels of types: 1xUINT8, 3xUINT8.
This operation supports automatic parallelization for multicore and multiprocessor systems.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
Error type | Description |
---|---|
DomainError | Region exceeds an input image in ThresholdToRegion_Color. |
DomainError | Not supported inImage pixel format in ThresholdToRegion_Color. Supported formats: 1xUInt8, 2xUInt8, 3xUInt8, 4xUInt8. |
Complexity Level
This filter is available on Basic Complexity Level.
Filter Group
This filter is member of ThresholdToRegion filter group.
See Also
- ColorDistanceImage – Compares each pixel with the specified color using chromatic and non-chromatic information.
