CropSurface


Module: Vision3DStandard

Removes from the surface points that are not contained in a given rectangular box.

Name Type Description
Input value
inSurface Surface Input surface
Input value
inRoi Region* Region of interest
Input value
inXLimits ValueLimits_f64
Input value
inYLimits ValueLimits_f64
Input value
inZLimits ValueLimits_f64
Input value
inPreserveDimensions Bool Flag indicating whether the surface dimensions should be preserved or not
Output value
outSurface Surface Output surface
Output value
outRejected Region Region of locations where points are not contained in a given rectangular box

Description

The operation removes points from surface that are not contained in a given rectangular box within provided coordinates.
It is also possible to narrow this box by editing inRoi, Region of Interest of operation.
Coordinates are defined via acceptable limits for their values. E.g. inXLimits.MinValue is minimum and inXLimits.MaxValue is maximum value of the X coordinate. Every point with its X coordinate outside of this range is removed.
Flag inPreserveDimensions informs if the operation output should keep the original dimensions of its input. E.g. if inSurface has its Width=300, Height=200 and Pitch=608 and the flag is enabled, the outSurface will have exactly the same dimensions of 300x200x608. However, if the flag is disabled, outSurface will have its dimensions smaller to adjust them to surface size, but its XOffset, YOffset, ZOffset properties will be accordingly bigger in order to keep the surface in the same place in workspace.
Operation returns the cropped Surface as well as removed Region if one needs to perform further actions on removed points.

Examples

Description of usage of this filter can be found in examples and tutorial: Chocolate Cookies Inspection 3D.

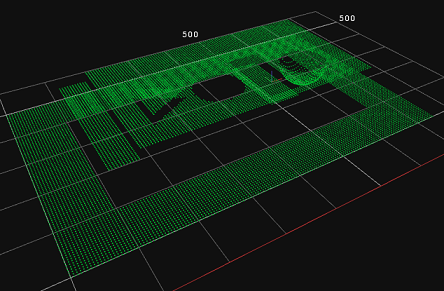

A sample Surface object.

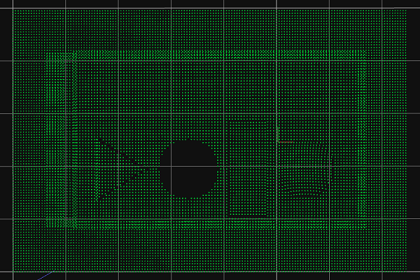

The same Surface object seen from above.

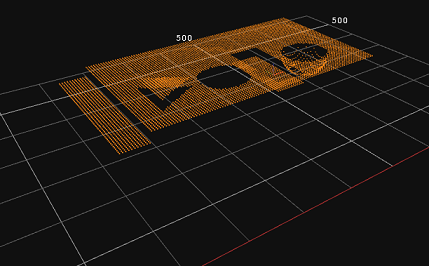

A sample Surface object cropped through half of its height.

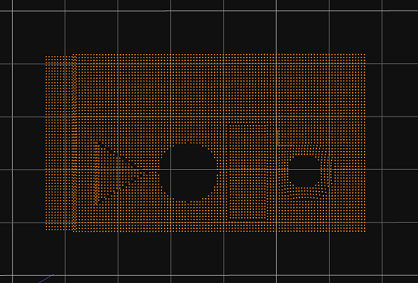

Cropped Surface object seen from above.

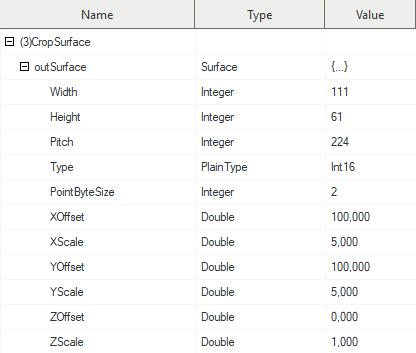

Properties of a cropped surface with dimension preservation enabled.

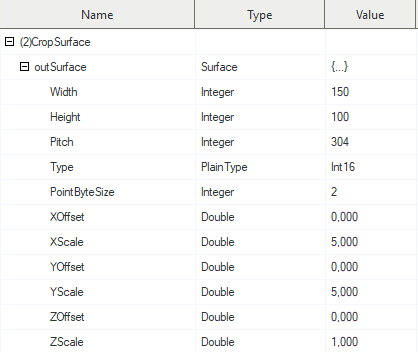

Properties of a cropped surface with dimension preservation disabled.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Region of interest exceeds an input surface in CropSurface.

Complexity Level

This filter is available on Basic Complexity Level.

Filter Group

This filter is member of CropSurface filter group.
